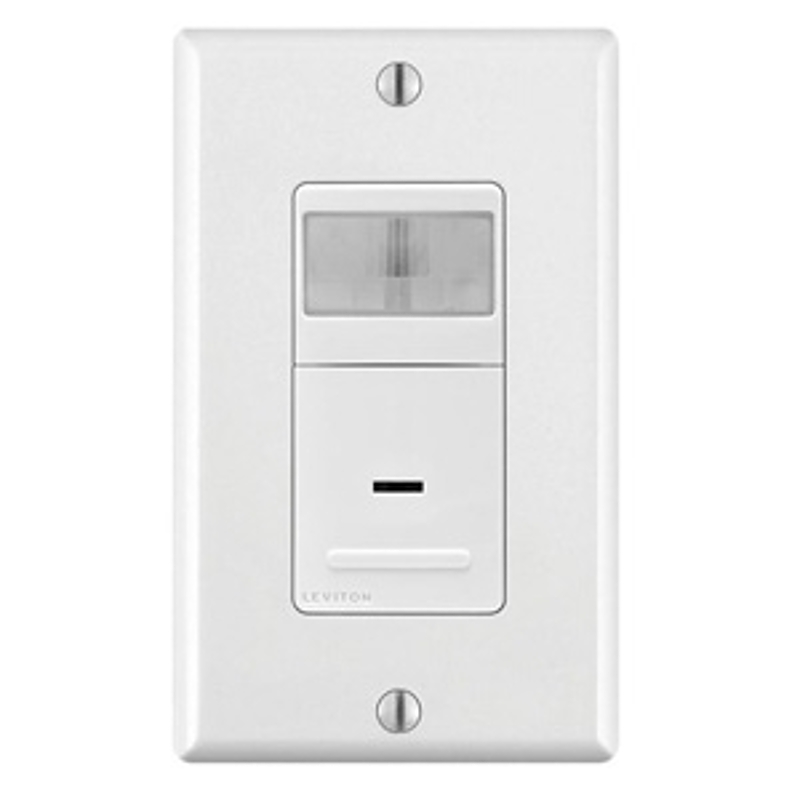

Leviton IPS02-742 Series Occupancy Sensor, Relay Sensor, 1-Pole, 180 deg View, 900 sq-ft Coverage Area

Leviton

Leviton IPS02-742 Series Occupancy Sensor, Relay Sensor, 1-Pole, 180 deg View, 900 sq-ft Coverage Area

Leviton IPS02-742 Series Occupancy Sensor, Relay Sensor, 1-Pole, 180 deg View, 900 sq-ft Coverage Area
  • Compatible Bulb Type: Dimmable CFL Dimmable LED Incandescent
  • Coverage Area: 900 sq-ft
  • Field of View: 180 deg
  • Number of Poles: 1
  • Operating Temperature: 0 to 40 deg C
  • Model #: DOS02-742
  • UPC #: 078477572559
  • SKU: 7404775

Your shopping list will be used for pickup in-store

Product Details

Leviton's new line of occupancy and vacancy sensor combines state-of-the-art technology with new aesthetics to provide optimal management of lighting and motor loads and a choice of either manual-on (vacancy sensor) or automatic-on (occupancy sensor) switching. These energy-saving sensors are engineered to ensure that lights/motors will turn on manually or automatically and turn off automatically when motion is no longer detected within the covered range. Designed to fit in a standard wallbox, these devices offer 180 deg field of view and 900 sq-ft of coverage.

Key Features

  • Screw terminals for easier installation
  • Variety of models for control of CFL, fluorescent ballast, halogen, incandescent LED or motor loads
  • Low-profile design blends in with walls for a discreet appearance
  • Ambient light override prevents occupancy sensors from switching the lights on when there is ample natural sunlight
  • Adjustable delayed off time which can be set for 30 secs, 5 mins, 15 mins or 30 mins for effective energy management
  • Neutral not required in most models for ease of installation in remodel or new construction
  • Contemporary styling in line with Leviton's Decora line of wiring devices
  • Compatible with Decora screwless wallplates
  • Relay-based sensor for reliable switching of desired load
  • Ground required for operation

Item Specifications

Compatible Bulb TypeDimmable CFL Dimmable LED Incandescent
Coverage Area900 sq-ft
Field of View180 deg
Number of Poles1
Operating Temperature0 to 40 deg C
Sensor TypeRelay
Switch TypeUniversal
Time Delay30 s 5 min 15 min or 30 min
Voltage Rating120 V
Wattage Rating300 W
MORE DETAILS:
  • Application: For basements, bathrooms, bedrooms, dining rooms, garages, kitchens, living/family rooms, utility/laundry rooms
