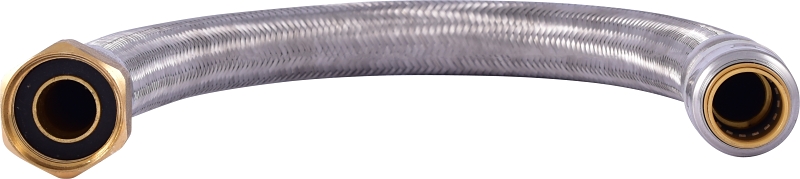

SharkBite Max UR3068FX18 Water Heater Connector, Flexible, 1/2 in Inlet, FIP Inlet, 3/4 in Outlet, FIP Outlet

SharkBite

SharkBite Max UR3068FX18 Water Heater Connector, Flexible, 1/2 in Inlet, FIP Inlet, 3/4 in Outlet, FIP Outlet

SharkBite Max UR3068FX18 Water Heater Connector, Flexible, 1/2 in Inlet, FIP Inlet, 3/4 in Outlet, FIP Outlet
  • Connector Material: DZR Brass
  • Diameter: 1.3 in
  • Flexible/Rigid: Flexible
  • Inlet Connection Size: 1/2 in
  • Inlet Connection Type: FIP
  • Model #: UR3068FX18CA
  • UPC #: 697285082229
  • SKU: 3072675

Your shopping list will be used for pickup in-store

Product Details

SharkBite Max braided flexible water heater connector allows you to work in tight spaces and easily connect a water heater with existing pipes that don't line up. Our braided water heater supply lines are approved for use on electric or gas water heaters with a flue vent. Rely on SharkBite Max innovative push-to-connect water heater hose design to reduce extra joints or fittings, allowing for faster install time.

Key Features

  • Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
  • Half the insertion effort, double the burst pressure
  • Can be installed on wet lines and pressure tested immediately
  • Stainless steel retainer adds strength and durability
  • High-performance DZR lead-free brass body
  • No special tools, crimping, soldering or glue required
  • Can be rotated after installation
  • No tube liner required for PEX
  • Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool

Item Specifications

Connector MaterialDZR Brass
Diameter1.3 in
Flexible/RigidFlexible
Inlet Connection Size1/2 in
Inlet Connection TypeFIP
Length18
Outlet Connection Size3/4 in
Outlet Connection TypeFIP
Pressure Rating200 psi
Suitable forPEX Copper CPVC PE-RT or HDPE SDR-9 Pipes
Temperature Rating140 deg F
Tubing MaterialStainless Steel
TypeBraided
MORE DETAILS:
  • Application: For residential and commercial potable water, recirculation, hydronic heating/cooling and direct burial, water heater installation, gas water heater installation and tankless water heater installation
  • Warranty: 25 Year PEX, Copper, CPVC, PE-RT, 5 Year HDPE SDR-9
