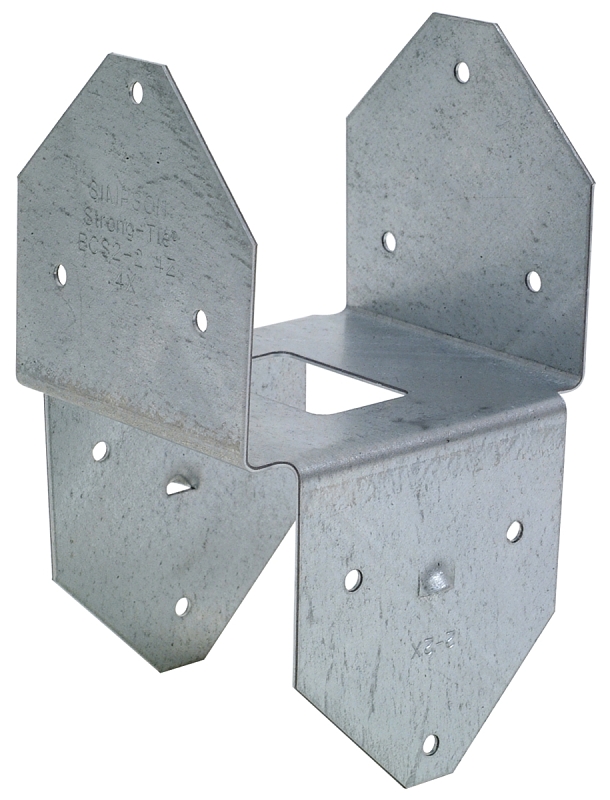

Simpson Strong-Tie BCS Series BCS2-3/6Z Post Cap, 2 to 3 x 6 in Post/Joist, Steel, ZMAX

Simpson Strong-Tie

Simpson Strong-Tie BCS Series BCS2-3/6Z Post Cap, 2 to 3 x 6 in Post/Joist, Steel, ZMAX

Simpson Strong-Tie BCS Series BCS2-3/6Z Post Cap, 2 to 3 x 6 in Post/Joist, Steel, ZMAX
  • Fastener Type: Nail
  • Finish: ZMAX
  • Length: 4-3/8
  • Material: Steel
  • Nail Diameter: 0.162 in
  • Model #: BCS2-3/6Z
  • UPC #: 707392780106
  • SKU: 7832900

Your shopping list will be used for pickup in-store

Product Details

The BCS is designed to connect a multi-ply member beam to a post. The dimensions of this post cap accommodate the narrower width of multiple 2X members on top of the post. The BCS provides both lateral and uplift support and features double-shear nailing that distributes the load through two points for optimal strength.

Key Features

  • Provides a positive connection for a post to a wood deck
  • Stronger than angled nailing or screw fastening
  • Reduces the chance of the post splitting and eliminates nailing into end grain
  • Not recommended for non top-supported installations (such as fences or unbraced carports)
  • ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Opposing flanges provide increased lateral resistance
  • Sized specifically for multi-2X widths
  • Do not install bolts into pilot holes
  • Install dome nails on beam; drive nails at an angle through the beam into the post below to achieve the table loads

Item Specifications

Fastener TypeNail
FinishZMAX
Length4-3/8
MaterialSteel
Nail Diameter0.162 in
Post/Joist Size2 to 3 x 6 in
Width4-5/8
