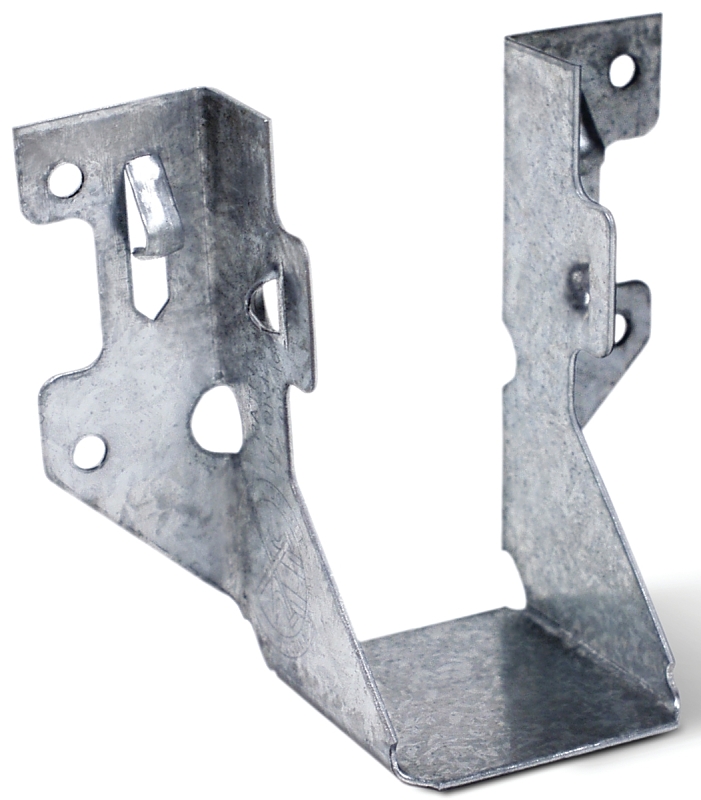

Simpson Strong-Tie LUS Series LUS24Z Joist Hanger, 3-1/8 in H, 1-3/4 in D, 1-9/16 in W, Steel, ZMAX, Face

Simpson Strong-Tie

Simpson Strong-Tie LUS Series LUS24Z Joist Hanger, 3-1/8 in H, 1-3/4 in D, 1-9/16 in W, Steel, ZMAX, Face

Simpson Strong-Tie LUS Series LUS24Z Joist Hanger, 3-1/8 in H, 1-3/4 in D, 1-9/16 in W, Steel, ZMAX, Face
  • Depth: 1-3/4 in
  • Fastener Type: Nail
  • Finish: ZMAX
  • Material: Steel
  • Mounting Type: Face
  • Model #: LUS24Z
  • UPC #: 044315804304
  • SKU: 3548955

Your shopping list will be used for pickup in-store

Product Details

The LUS is an easy to install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.

Key Features

  • Patented double-shear nailing design provides greater strength with fewer nails
  • Speed prongs for fast and easy installation
  • Angled joist nailing easier in tight spaces
  • Do not bend or remove tabs
  • Made from 18 ga steel
  • ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Cannot be modified
  • Works for a wide range of applications
  • Features speed prongs used to temporarily position and secure the connector for easier and faster installation
  • LUS series hangers are tested, load-rated and code compliant

Item Specifications

Depth1-3/4 in
Fastener TypeNail
FinishZMAX
MaterialSteel
Mounting TypeFace
Width1-9/16
