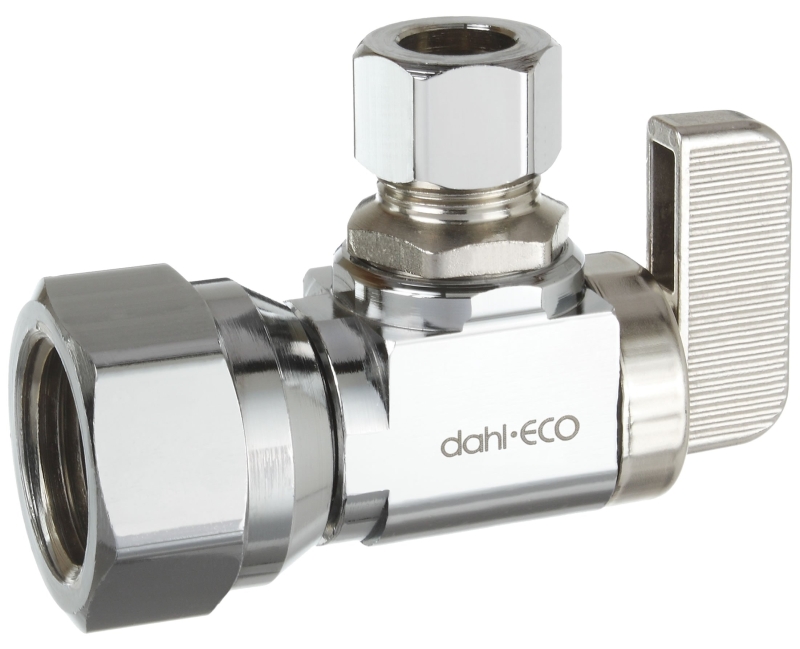

Dahl mini-ball 611-53-31-BAG Angle Valve, 1/2 x 3/8 in Connection, FIP x Compression, 250 psi Pressure, Brass Body

Dahl

Dahl mini-ball 611-53-31-BAG Angle Valve, 1/2 x 3/8 in Connection, FIP x Compression, 250 psi Pressure, Brass Body

Dahl mini-ball 611-53-31-BAG Angle Valve, 1/2 x 3/8 in Connection, FIP x Compression, 250 psi Pressure, Brass Body
  • Actuator Type: Locking Lever
  • Body Material: Brass
  • Color: Silver
  • Connection Size: 1/2 x 3/8 in
  • Connection Type: FIP x Compression
  • Model #: 6115331BAG
  • UPC #: 773341901847
  • SKU: 1798495

Your shopping list will be used for pickup in-store

Product Details

Dahl mini-ball Angle Valve, 1/2 x 3/8 in Connection, FIP x Compression Connection, 250 psi, Actuator Type: Locking Lever, Temperature Rating: 250 deg F, Softgoods Material: EPDM, FKM, PTFE, Body Material: Brass, Nickel Plated Zinc Handle, Chrome, Silver, Dimensions: 2.6 in L x 1.5 in W x 1.8 in H, Suitable for: Copper Compression Iron NPT Pipe

Key Features

  • Every valve is tested before leaving our factory
  • They may build them with something else, but they fix them with these

Item Specifications

Actuator TypeLocking Lever
Body MaterialBrass
ColorSilver
Connection Size1/2 x 3/8 in
Connection TypeFIP x Compression
Dimensions2.6 in L x 1.5 in W x 1.8 in H
FinishChrome
Handle MaterialNickel Plated Zinc
Pressure Rating250 psi
Softgoods materialEPDM FKM PTFE
Suitable forCopper Compression Iron NPT Pipe
Temperature Rating250 deg F
MORE DETAILS:
  • Application: For indoor applications
